The Authentic Mill 50

Discover our professional stone mill
the Authentique 50 made in our workshop.

  • Function(s) : Grinding and sieving
  • Grinds all types of sufficiently dry seeds, except oilseeds (between 12 and 14% moisture content for wheat).
  • Extraction rate of 80% in a single pass (for wheat flour). Output of 15kg/h for bise wheat flour.
  • 50cm millstones made from Sidobre granite
  • Hopper capacity: 55L, i.e. 40kg of wheat
  • Sifter made from CP birch
    Simple sifting mill (without extraction), capacity of 80kg of sifted flour, i.e. more than 2 hoppers full of wheat at 80% yield.
  • 300µ screen included (T80 equivalent). Other mesh openings are available as options

How the mill works
Authentic Astreïa

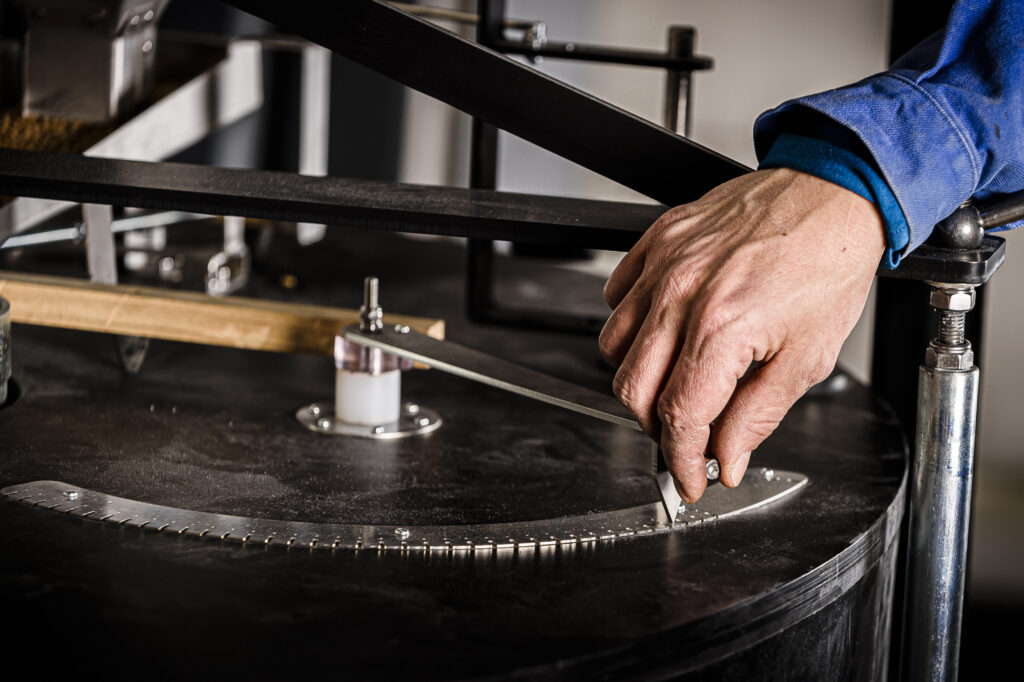

The grain is unwound using a spring-loaded oscillating grinding wheel system, which ensures slow action. As a result, the grain is not crushed and only one pass is required.

Astrié millstones help to preserve the starch-gluten bonds, the protein base and all the nutrients by incorporating the grain germ. Your flour is more supple and easier to work with, and above all more nutritious and digestible for your customers.

Astreïa flour is the exact reflection of the grain, a real local flour!

présentation ensemble

The Authentique 50
comes with

  • A 300µ sieve for bisecting flour (T80 equivalent)
  • A sifting machine and a shovel to extract the flour from the sifting machine

To meet your needs as closely as possible,
additional options are available:

Small bran sieve for ML50 & ML100 mills

Small bran sieve for ML50 & ML100 mills

You can make several types of flour with a single mill. Your mill is sold with a sieve for making T80 equivalent flour, but you can interchange different sieves depending on the type of flour required (T65/110/130/150) or the variety of cereals to be processed.
The small bran sieve allows you to reuse the small bran for specific recipes, to make the work surface flatter or to make polenta, for example.

Additional 250µ sieve for ML50 mill

Additional 250µ sieve for ML50 mill

You can make several types of flour with a single mill. Your mill is sold with a sieve for making T80 equivalent flour, but you can interchange different sieves depending on the type of flour required (T65/110/130/150) or the variety of cereals to be processed.
The small bran sieve allows you to reuse the small bran for specific recipes, to make the work surface flatter or to make polenta, for example.

Additional 300µ sieve for ML50 mill

Additional 300µ sieve for ML50 mill

You can make several types of flour with a single mill. Your mill is sold with a sieve for making T80 equivalent flour, but you can interchange different sieves depending on the type of flour required (T65/110/130/150) or the variety of cereals to be processed.
The small bran sieve allows you to reuse the small bran for specific recipes, to make the work surface flatter or to make polenta, for example.

Additional 470µ sieve for ML50 mill

Additional 470µ sieve for ML50 mill

You can make several types of flour with a single mill. Your mill is sold with a sieve for making T80 equivalent flour, but you can interchange different sieves depending on the type of flour required (T65/110/130/150) or the variety of cereals to be processed.
The small bran sieve allows you to reuse the small bran for specific recipes, to make the work surface flatter or to make polenta, for example.

Additional 600µ sieve for ML50 mill

Additional 600µ sieve for ML50 mill

You can make several types of flour with a single mill. Your mill is sold with a sieve for making T80 equivalent flour, but you can interchange different sieves depending on the type of flour required (T65/110/130/150) or the variety of cereals to be processed.
The small bran sieve allows you to reuse the small bran for specific recipes, to make the work surface flatter or to make polenta, for example.

Additional 800µ sieve for ML50 mill

Additional 800µ sieve for ML50 mill

You can make several types of flour with a single mill. Your mill is sold with a sieve for making T80 equivalent flour, but you can interchange different sieves depending on the type of flour required (T65/110/130/150) or the variety of cereals to be processed.
The small bran sieve allows you to reuse the small bran for specific recipes, to make the work surface flatter or to make polenta, for example.

Additional 1000µ sieve for ML50 mill

Additional 1000µ sieve for ML50 mill

You can make several types of flour with a single mill. Your mill is sold with a sieve for making T80 equivalent flour, but you can interchange different sieves depending on the type of flour required (T65/110/130/150) or the variety of cereals to be processed.
The small bran sieve allows you to reuse the small bran for specific recipes, to make the work surface flatter or to make polenta, for example.

Extraction 1 outlet for ML50

Extraction 1 outlet for ML50

Extraction (auger to collect flour automatically) + Bagging 1 output

Automatic 4-outlet bagging for ML50

Bagging unit with 4 outlets for filling 4 bags of approximately 25 kg with automatic stop sensor

Automatic 7-outlet bagging for ML50 & ML100

Bagging system with 7 outlets for filling 7 bags of approximately 25 kg with automatic stop sensor

Bagging New 14-outlet version for ML50 / ML100 / REVOLUTION

Bagging New 14-outlet version for ML50 / ML100 / REVOLUTION

Compact boom (total length less than 2m40 for 14 bags).

Hygienic solution because it’s easy to clean (no tools required).
The top of the trough is fitted with a hinged transparent cover for quick and easy cleaning.

The 14 bags give 24hrs autonomy on the ML50 – 12hrs on the ML100 – 6hrs on the ML REVOLUTION.

The bags are attached tightly to the bagging ramp.
The bags do not tip over, no dust is generated and no contamination is possible from the outside.

You can choose which bags to fill and which not, thanks to trap doors.

Horizontal ramp, all bags are filled equally.

Ventilated bagging ramp to eliminate the risk of condensation.

Capacitive bluttery sensor for ML50

Automatic filling stop for sieves without automatic extraction

Electrical Adaptation – Switching the mill to 220V for the ML50 mill

Electrical Adaptation – Switching the mill to 220V for the ML50 mill

This option offered by Astréïa allows you to ensure the continuous electrical operation of your mill to industrial standards and to provide after-sales service for your equipment.

Bran outlet trunking for ML50 & ML100

Bran outlet trunking for ML50 & ML100

Adjustable in all axes and orientations to suit any layout
Sound outlet available to the left or right of the bagging bar for Astréïa ML50 & ML100 mills
Chute size: 300 x 300 x 1000 mm

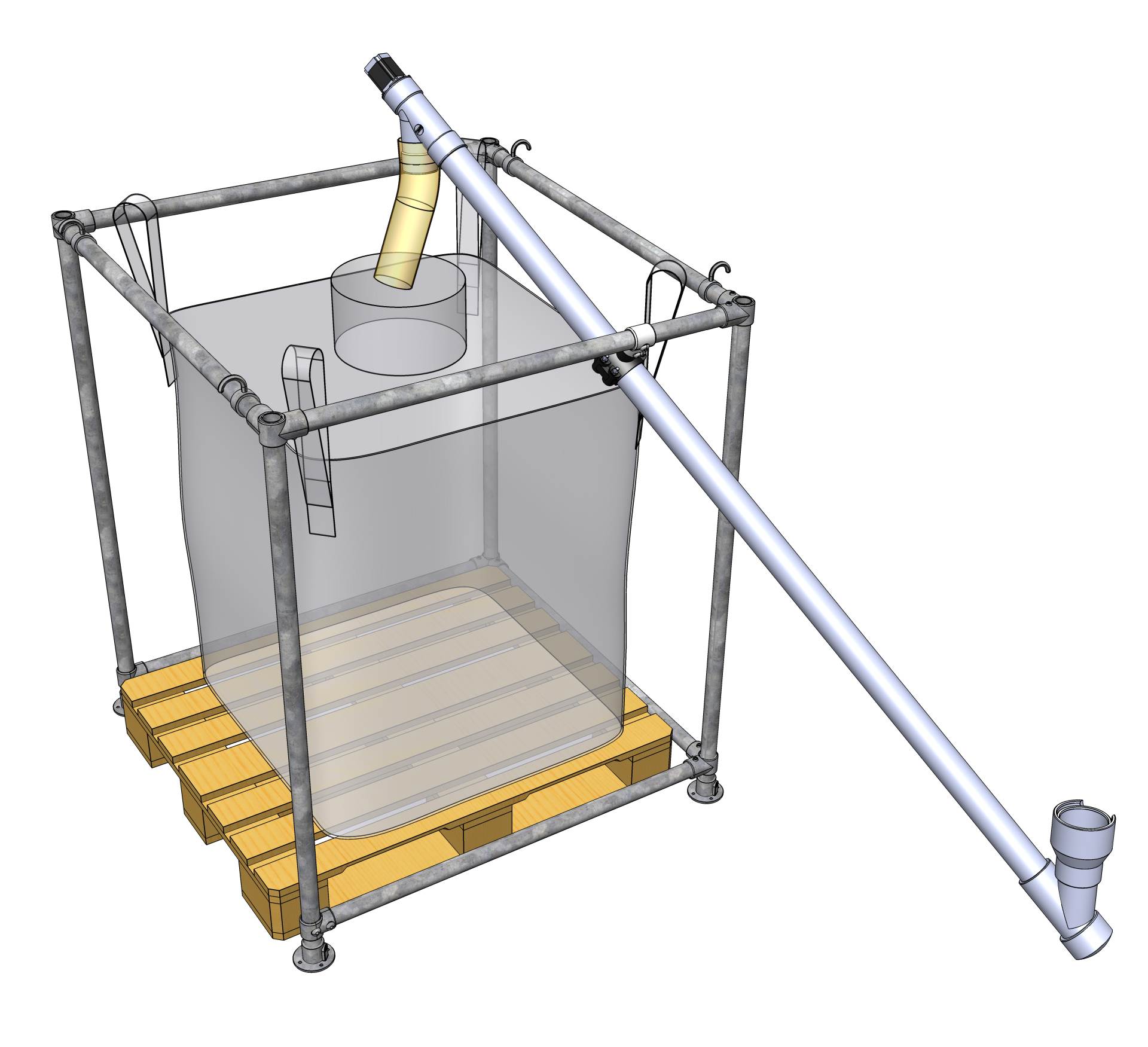

Bran Elevation Screw for ML100 & ML REVOLUTION mills

Allows the bran leaving the sieve to be transferred to a large container (a Big-Bag and its support, for example).

Support table

Support table

Necessary to raise the mill to the height of your bags or containers.

Transparent grinding wheel for ML50 mill

Transparent grinding wheel for ML50 mill

Allows you to see the entire grind after it has passed between the grinding wheels.

Bluterie front in transparent Plexiglas

Bluterie front in transparent Plexiglas

Part of the front of the sifting machine is fitted with transparent Plexiglas so that the sifted flour can be seen falling into the sifting box.

Do you need more information?

Contact us Get your quote in just 24 hours

Full technical specifications

Physical characteristics

Poids (vide) :
300kg
Dimensions (longueur x largeur x hauteur) :
190cm (370cm avec ensachage) x 90cm x 150cm (surélévation de 80 à 100cm - hauteur des sacs)
Surface utile :
7m² au sol et 2,5m de hauteur

Electrical power and energy
NB: Single-phase adaptation available on request

Power supply:
Three-phase power supply 16A - 380V 3P+T CEE red
Power:
1,2kW
Grinding wheel speed:
225trs/min
Volume:
75dB

Throughput and yield
Extraction rate of 80% in a single pass (in bise wheat flour)



Hourly output:
between 12 and 15kg
Daily yield:
200kg based on 2 productions per day (<14h production time) to fill 2x4 25kg bags
Monthly return:
4t based on 5 days a week with 2 daily productions

Settings and maintenance
Automatic mill shutdown when the hopper is empty thanks to a mechanical sensor, or when all the flour bags in the bagging ramp are full.

Manual adjustment of grain flow and grinding wheel spacing.

All our machines come with a 1-year parts and labour warranty, and for added peace of mind we offer preventive and corrective maintenance contracts.

Standards and installation conditions
Compliance with CE, food, safety and hygiene standards.

The machine must be anchored to the ground or its platform for stability and safety reasons.

The mill must be installed in a ventilated, dry (<70%RH) and temperate (10 to 30°C) room.

Find all the technical information in our free catalogue.
